CLAMP-2X7-RNG-06
Clamp for 2 Fiber cable and one Power cable

Rev : A | Rev date : 15 Nov 2025

Combined Power and Fiber clamp.

Feature / Benefits

  • 3 cables in one run
clamp-2x7-rng-06 pic1.jpg
General Specifications
Product Type Hanger
Hanger Type Combined Power and Fiber Hanger
Cable Type Power and Fiber separated
Testing and Environmental
Installation Temperature -20°C to 50°C (-4°F to 122°F)
Operation Temperature -40°C to 85°C (-40°F to 185°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Mechanical Specifications

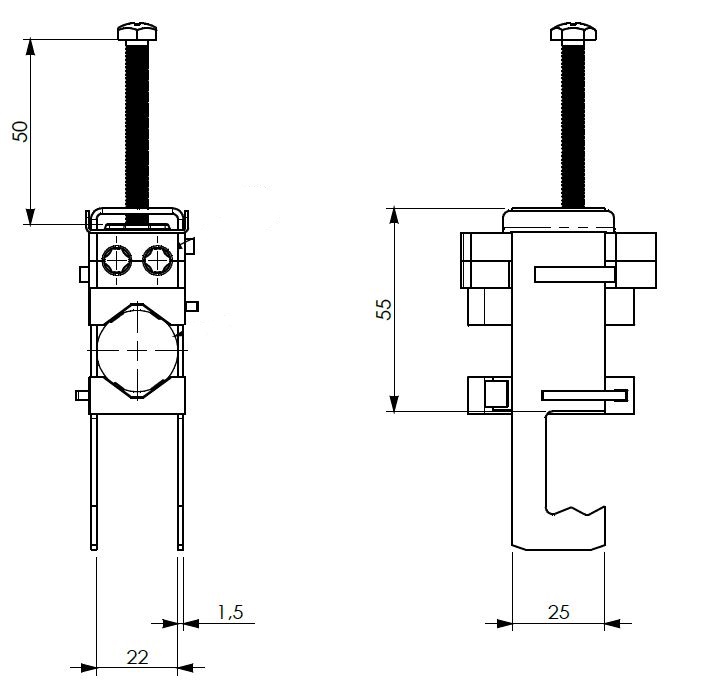

Cable Size 1 DC cable D=12-22 mm; 2 FO cables d=6-7 mm
Number of Cable / Waveguide Runs 1 DC and 2 FO
Material

Stainless cable clamp
Complete with saddles
Recommended / Maximum Clamp Spacing 0.9 / 1.2 (2.95 / 4)
Packaging Information
Package Quantity 1
Weight per piece 0.093kg (0.205lb)
