HYBRIFLEX Optical Fiber & Power Cables - Hybrid
HYBRIFLEX Hybrid riser and jumper cables include any combination of power wires, optical fiber, and other cable types in a single lightweight and crush-resistant cable. These extensively field-proven cable solutions reduce installation time, complexity, and cost. More than 65 million feet of HYBRIFLEX cables have been deployed worldwide. Using HYBRIFLEX can significantly reduce installation time compared to installing individual power, fiber optic, and other cable types.
To ensure easy installation and long life in the field, HYBRIFLEX cables feature:
- Best-in-class bending radius
- Robust, corrugated aluminum or copper-wrapped armor
- Strong core retention force
- Proven corrosion resistance
ACCELERATE ANY TECHNOLOGY ROLLOUT
HYBRIFLEX cables support any frequency and any technology to support future network evolution and protect your investment. Our extremely versatile family of power and fiber cables and jumpers are used in a wide range of applications globally, including:
- High-power 5G radio deployments
- Small cell 5G mmWave radio deployments
- Cloud-RAN (C-RAN) deployments where RRHs are located significant distances from Baseband Units (BBUs)
- In-building Distributed Antenna System (DAS) solutions
- In-tunnel connectivity solutions
CUSTOMIZE WITH COMPLETE CONFIDENCE
Our broad portfolio of HYBRIFLEX cabling solutions meets the requirements for many applications. When specific configurations are required, we have the expertise and agility to adapt our designs to deliver any combination of:
- Riser cables and jumpers: Fiber and power combined or fiber-only, in any lengths
- Power wires: Single or multi-conductor, armored or unarmored, 4 AWG to 20 AWG
- Optical fiber: Single or multi-pair, riser or jumper, single-mode, or multi-mode
- Other cable types: Ethernet, twisted pair, and small-form coax are just some examples
- Accessories: Enclosures, clamps, hangers, hoist grips, grounding mechanisms HYBRIFLEX cables are available with factory-terminated assemblies or as bulk cable.
Categories
Filters
Number of DC Pairs
4 - 3 - 1
4 (2)
3 (8)
1 (8)
F/O Cable Type
Tight-Buffer, Single mode - Tight-Buffer, Multimode - Tight-Buffer, Singlemode - Tight Buffer, Multimode - Tight Buffer, Single Mode - Tight Buffer, Multi Mode - Tight Buffer, Multi-Mode - Tight buffer, OM4 Multi-mode - Tight buffer, Single-mode - Tight buffer, G657A2 Single-mode - 2 x Dry Loose-tube fibre sub units numbered 1 and 2, fibres in Yellow LSZH jackets with aramid yarn as strength member
Tight-Buffer, Single mode (3)
Tight-Buffer, Multimode (2)
Tight-Buffer, Singlemode (7)
Tight Buffer, Multimode (2)
Tight Buffer, Single Mode (2)
Tight Buffer, Multi Mode (1)
Tight Buffer, Multi-Mode (1)
Tight buffer, OM4 Multi-mode (1)
Tight buffer, Single-mode (1)
Tight buffer, G657A2 Single-mode (1)
2 x Dry Loose-tube fibre sub units numbered 1 and 2, fibres in Yellow LSZH jackets with aramid yarn as strength member (1)
Loading products
HB078-1-04U4-S8J
- Size
- 7/8
- Number of DC Pairs
- 4
- F/O Cable Type
- Tight-Buffer, Single mode
- Number of F/O Pairs
- 8
- Cross Section of Power Cable - mm²
- 4
- Cross Section of Power Cable - AWG
- 12
HB078-1-04S3-M6J
- Size
- 7/8
- Number of DC Pairs
- 3
- F/O Cable Type
- Tight-Buffer, Multimode
- Number of F/O Pairs
- 6
- Cross Section of Power Cable - mm²
- 4
- Cross Section of Power Cable - AWG
- 12
HB078-1-04S3-S6J
- Size
- 7/8
- Number of DC Pairs
- 3
- F/O Cable Type
- Tight-Buffer, Singlemode
- Number of F/O Pairs
- 6
- Cross Section of Power Cable - mm²
- 4
- Cross Section of Power Cable - AWG
- 12
HB078-1-06S3-S6J
- Size
- 7/8
- Number of DC Pairs
- 3
- F/O Cable Type
- Tight-Buffer, Singlemode
- Number of F/O Pairs
- 6
- Cross Section of Power Cable - mm²
- 6
- Cross Section of Power Cable - AWG
- 10
HB078-1-06U3-S6J
- Size
- 7/8
- Number of DC Pairs
- 3
- F/O Cable Type
- Tight-Buffer, Singlemode
- Number of F/O Pairs
- 6
- Cross Section of Power Cable - mm²
- 6
- Cross Section of Power Cable - AWG
- 10
HB012-1-04U1-S2J
- Size
- 1/2
- Number of DC Pairs
- 1
- F/O Cable Type
- Tight-Buffer, Singlemode
- Number of F/O Pairs
- 2
- Cross Section of Power Cable - mm²
- 4
- Cross Section of Power Cable - AWG
- 12
HB012-1-06U1-S2J
- Size
- 1/2
- Number of DC Pairs
- 1
- F/O Cable Type
- Tight-Buffer, Singlemode
- Number of F/O Pairs
- 2
- Cross Section of Power Cable - mm²
- 6
- Cross Section of Power Cable - AWG
- 10
HB012-1-06U1-M2J
- Size
- 1/2
- Number of DC Pairs
- 1
- F/O Cable Type
- Tight Buffer, Multimode
- Number of F/O Pairs
- 2
- Cross Section of Power Cable - mm²
- 6
- Cross Section of Power Cable - AWG
- 10
HB078-1-04S3-S6F
- Size
- 7/8
- Number of DC Pairs
- 3
- F/O Cable Type
- Tight-Buffer, Singlemode
- Number of F/O Pairs
- 6
- Cross Section of Power Cable - mm²
- 4
- Cross Section of Power Cable - AWG
- 12
HB012-1-04U1-M2J
- Size
- 1/2
- Number of DC Pairs
- 1
- F/O Cable Type
- Tight Buffer, Multimode
- Number of F/O Pairs
- 2
- Cross Section of Power Cable - mm²
- 4
- Cross Section of Power Cable - AWG
- 12
HB078-1-06S3-M6J
- Size
- 7/8
- Number of DC Pairs
- 3
- F/O Cable Type
- Tight-Buffer, Multimode
- Number of F/O Pairs
- 6
- Cross Section of Power Cable - mm²
- 6
- Cross Section of Power Cable - AWG
- 10

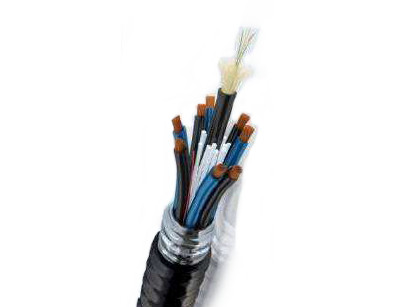

HB078-1-04U3-S6J
- Size
- 7/8
- Number of DC Pairs
- 3
- F/O Cable Type
- Tight-Buffer, Singlemode
- Number of F/O Pairs
- 6
- Cross Section of Power Cable - mm²
- 4
- Cross Section of Power Cable - AWG
- 12
HB078-S-10U3-S6J
- Size
- 7/8
- Number of DC Pairs
- 3
- F/O Cable Type
- Tight-Buffer, Single mode
- Number of F/O Pairs
- 6
- Cross Section of Power Cable - mm²
- 10
- Cross Section of Power Cable - AWG
- 7
HB078-S-06U4-S8F
- Size
- 7/8
- Number of DC Pairs
- 4
- F/O Cable Type
- Tight-Buffer, Single mode
- Number of F/O Pairs
- 8
- Cross Section of Power Cable - mm²
- 6
- Cross Section of Power Cable - AWG
- 10

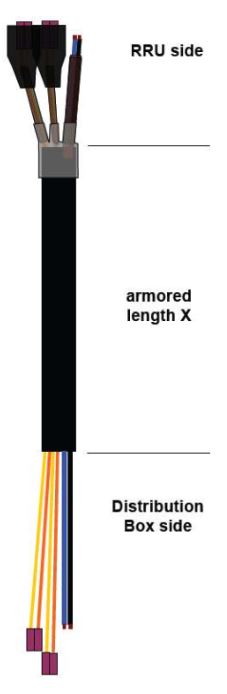

HA-FODC-ALBB-04-XX
- Number of DC Pairs
- 1
- F/O Cable Type
- Tight Buffer, Single Mode
- Number of F/O Pairs
- 2
- Fiber Termination End 1
- FULLAXS for Ericsson RRUs
- Fiber Termination End 2
- LC Connector
- Cross Section of Power Cable - mm²
- 4
- Cross Section of Power Cable - AWG
- 12

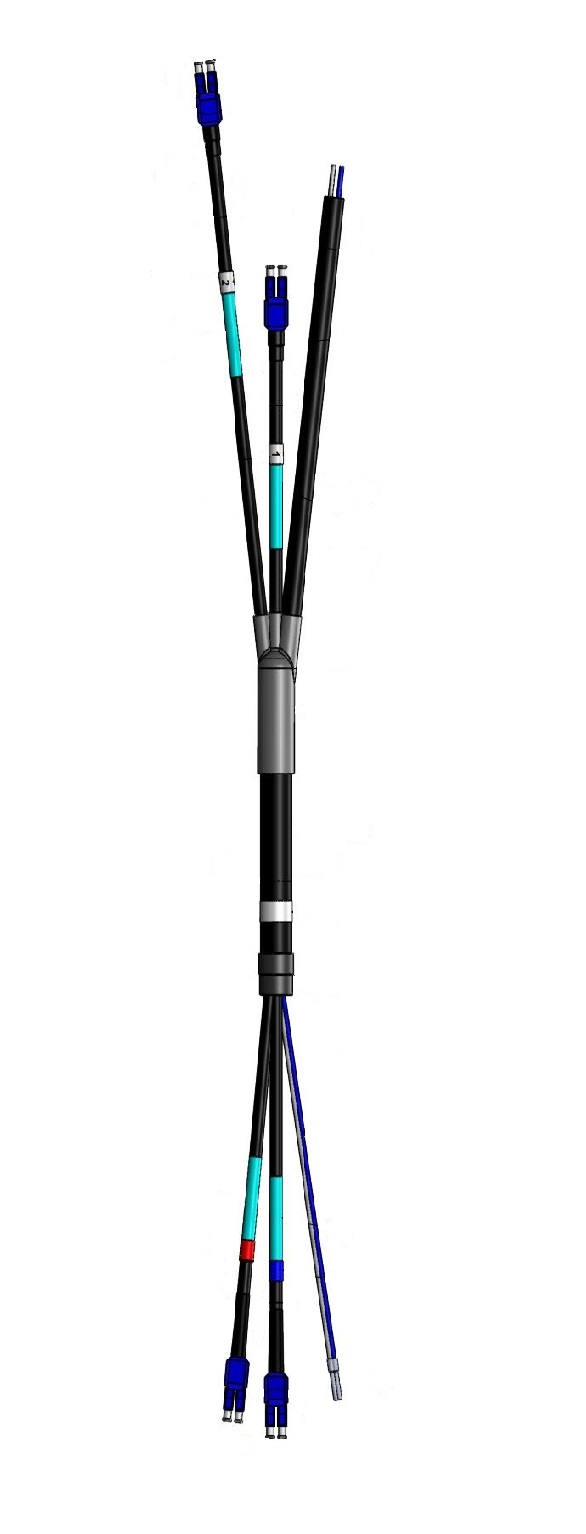

HA-FODC-LLBB-22-XX
- Number of DC Pairs
- 1
- F/O Cable Type
- Tight buffer, OM4 Multi-mode
- Number of F/O Pairs
- 2
- Fiber Termination End 1
- Duplex LC Connector
- Fiber Termination End 2
- Duplex LC Connector
- Cross Section of Power Cable - mm²
- 6

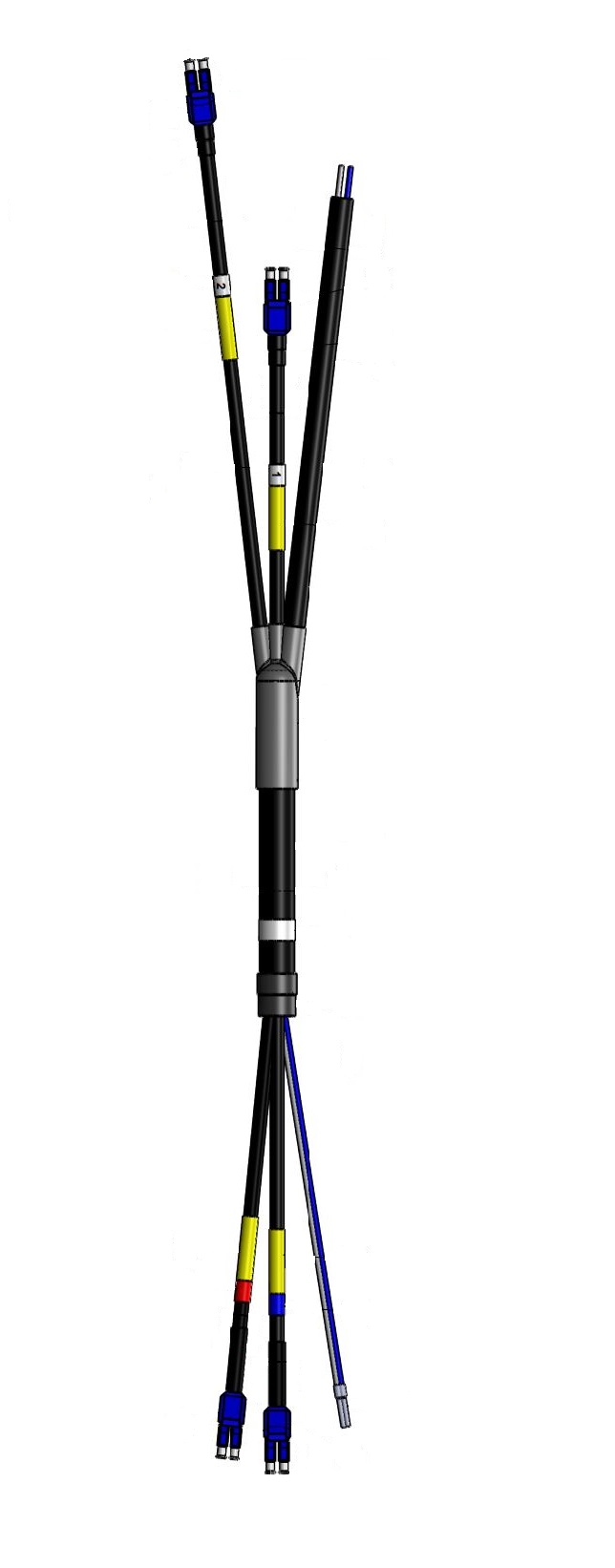

HA-FODC-LLBB-21-XX
- Number of DC Pairs
- 1
- F/O Cable Type
- Tight buffer, G657A2 Single-mode
- Number of F/O Pairs
- 2
- Fiber Termination End 1
- Duplex LC Connector
- Fiber Termination End 2
- Duplex LC Connector
- Cross Section of Power Cable - mm²
- 6

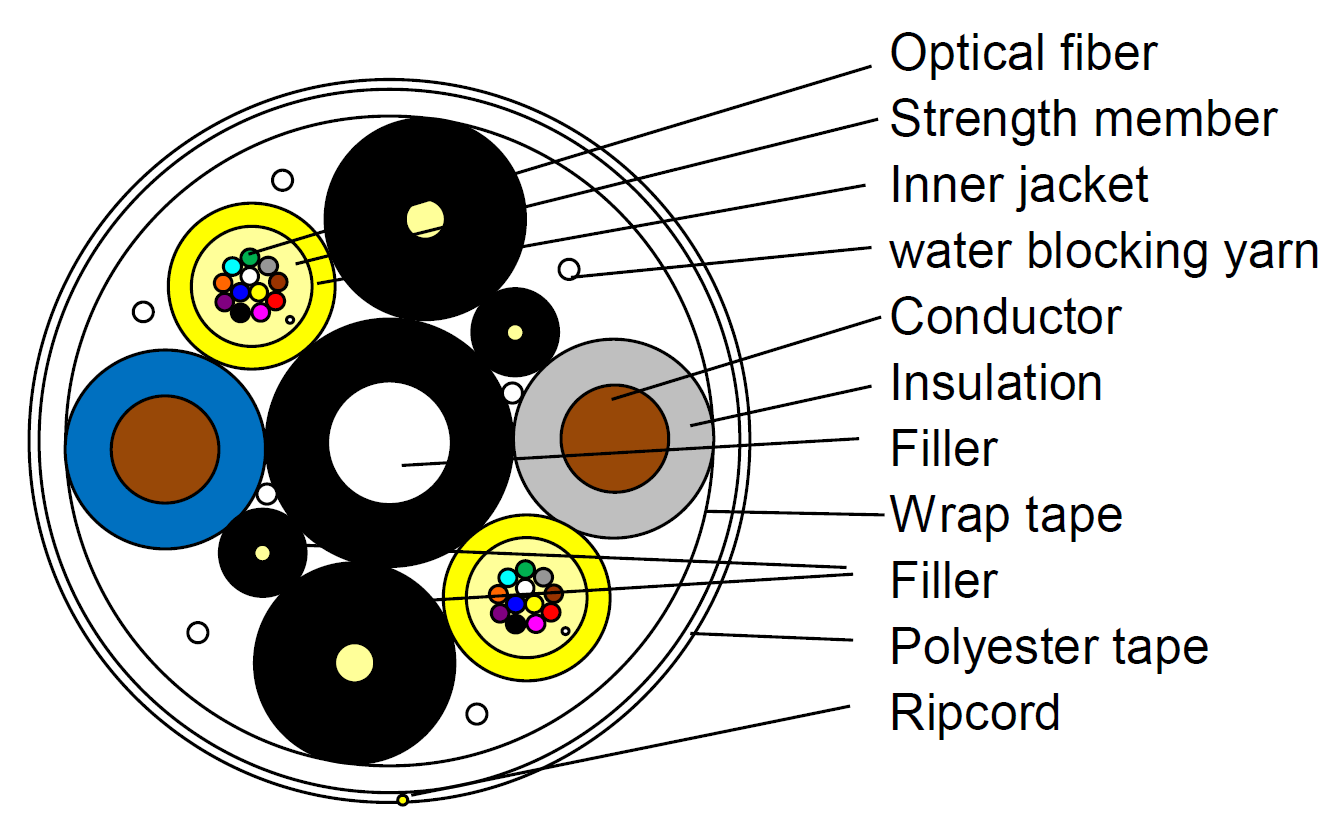

HB012-B-01U1-S12F
- Size
- 1/2"
- Number of DC Pairs
- 1
- F/O Cable Type
- 2 x Dry Loose-tube fibre sub units numbered 1 and 2, fibres in Yellow LSZH jackets with aramid yarn as strength member
- Number of F/O Pairs
- 12
- Cross Section of Power Cable - mm²
- 1.5
- Cross Section of Power Cable - AWG
- 16
