RADIAFLEX® Radiating Cables
RFS RADIAFLEX® radiating cable is the world’s leading “leaky feeder” cable solution. It is designed to deliver contoured indoor RF coverage with radio signals leaked from the apertures on the radiating cable’s outer conductor. This allows network operators to provide scalable and practical broadband wireless services for confined areas, such as tunnels, mines and large building complexes.
RFS advanced radiating cables allows for ultra-broadband wireless communication networks. RFS RADIAFLEX® cables are designed to achieve optimized performance at highest frequency bands which are critical from a system design perspective as well as regarding total cost of solution. The broadband feature enables cables to work on different bands in one single coverage system, thereby supporting multiple carriers and multiple standards. RADIAFLEX® cables feature the patented RFS radiating cable design techniques. This unique design allows RFS to offer cables that support current and future indoor commercial and private radio services from 30 MHz to 6000 MHz — including mission critical and 4G / 5G commercial radio in all bands — for valuable cost savings and outstanding product performance.
RADIAFLEX® cables are also engineered to provide highest possible fire safety performance complying with all relevant international standards including leading portfolio regarding latest European Construction Product Regulation (CPR) requirements.
As an ISO9001 and ISO14001 compliant organization RFS is committed to the highest international quality standards and respects the environment. RFS is the globally recognized leading designer, manufacturer and solution provider of distributed antenna systems (DAS) technology, with a track record of more than 45 years especially in radiating cable projects worldwide. RFS particularly serves customers with radiating cable solutions that enable performance optimized wireless network in confined areas such as complex tunnel environments.
RADIAFLEX® Radiating Cable Selection Guide
RFS’ new Radiating Cable selection guide helps you choose the right cable for your project. Choose from 24 unique cables that support all commercial and mission-critical services between 75 MHz and 3800 MHz.
Download the RADIAFLEX® selection guide Download the RADIAFLEX® selection table
RADIAFLEX® Installation Guideline
RFS’ new Radiating Cable installation guidelines helps you to install the RFS Radiating Cable in the best way.
Download the RADIAFLEX® installation guidelines
RADIAFLEX® Shipping & Drum Information
RFS offers L, A and H drums to accommodate your shipping and packing requirements.
Categories
Filters
Size
1-5/8 - 1/2 - 7/8 - 1-1/4
1-5/8 (12)
1/2 (10)
7/8 (11)
1-1/4 (15)
Cable Type
RAY - RLKW - RLK - RLKU - RLKX - RAYA - RCF - RLKAX
RAY (12)
RLKW (7)
RLK (12)
RLKU (12)
RLKX (2)
RAYA (1)
RCF (1)
RLKAX (1)
Jacket
JFN - JFL - CPR, EN50575:2017 classified cable - CPR, EN50575:2014 + A1:2016 classified cable - JFN, EN50575:2017 classified cable - JFL, EN50575:2017 classified cable - CPR, EN50575 classified cable - CPR, EN50575 : 2014 + A1:2016 classified cable - JFL, EN50575:2014 + A1:2016 classified cable
JFN (13)
JFL (12)
CPR, EN50575:2017 classified cable (1)
CPR, EN50575:2014 + A1:2016 classified cable (9)
JFN, EN50575:2017 classified cable (4)
JFL, EN50575:2017 classified cable (4)
CPR, EN50575 classified cable (1)
CPR, EN50575 : 2014 + A1:2016 classified cable (4)
JFL, EN50575:2014 + A1:2016 classified cable (1)
Jacket Color
black - Standard Black, other colors on request
black (3)
Standard Black, other colors on request (1)
Jacket Description
Halogen free, non corrosive, flame and fire retardant, low smoke, polyolefin - Halogen free, non corrosive, flame and fire retardant, low smoke, polyolefin + flame barrier tape above outer conductor for lowest cable loss - Halogen free, non corrosive, flame and fire retardant, low smoke, polyolefin + flame barrier tape above outer conductor - Halogen free, non corrosive, flame retardant, low smoke, polyolefin
Halogen free, non corrosive, flame and fire retardant, low smoke, polyolefin (16)
Halogen free, non corrosive, flame and fire retardant, low smoke, polyolefin + flame barrier tape above outer conductor for lowest cable loss (29)
Halogen free, non corrosive, flame and fire retardant, low smoke, polyolefin + flame barrier tape above outer conductor (2)
Halogen free, non corrosive, flame retardant, low smoke, polyolefin (1)
Jacket Testing Methods
Test methods for fire behaviour of cable : - IEC 60754-1/-2 smoke emission: halogen free, non corrosive - IEC 61034 low smoke - IEC 60332-1 flame retardant - IEC 60332-3-24 fire retardant - UL1666, ASTM E 662, NES711 and NES713 - IEC 60754-1/-2 smoke emission: halogen free, non corrosive - IEC 61034 low smoke - IEC 60332-1 flame retardant - IEC 60332-3-24 fire retardant - UL1666, ASTM E 662, NES711 and NES713 - CPR: EN50575:2017 class Cca s1 do a1 - CPR: EN50575:2017 class B2ca s1a d0 a1 - NFPA130 (ed. 2014) Ch.12 (NFPA70 ) via UL-1685/FT4/IEEE1202 - NFPA130 (ed. 2014) Ch.12 (NFPA70 ) via UL-1685/FT4/IEEE1202 - NFPA130 (ed. 2014) Ch.12 (NFPA70) via UL-1685/FT4/IEEE1202 - EN50575:2017 (Hannover production) class Dca s1 d2 a1 - EN50575:2017 class Dca s1 d2 a1 - EN50575:2017 class Dca s1b d2 a1 - CPR : EN50575:2014 + A1:2016 class B2ca s1a do a1 - CPR: EN50575:2014 + A1:2016 class B2ca s1a do a1 - CPR: EN50575:2014 + A1:2016 class B2ca s1a d0 a1 - EN50575:2014 + A1:2016 (Hannover production) class B2ca s1b d0 a1 - CPR: EN50575:2014 + A1:2016 - CPR: EN50575:2014 + A1:2016 class B2ca s1b d0 a1 - EN50575:2014 +A1:2016 (Hannover production) class B2ca s1b do a1 - EN50575:2014 + A1:2016 (Hannover production) class B2ca s1b do a1 - CPR: EN50575:2014 + A1:2016 classified cable, class B2ca s1b do a1 - CPR: EN50575:2014 + A1:2016 classified cable, class B2ca s1a do a1 - EN50575:2014 + A1:2016 (Hannover production) class Dca s1 d2 a1 - CPR: EN50575:2014 + A1:2016 classified cable, class B2ca - s1a do a1 - UL1666, ASTM E 662, NES711, NES713 and NFPA130 - IEC 60754-1/-2 smoke emission, halogen free, non corrosive - EN50575:2014 + A1:2016 (Hannover production) class Cca s1a d1 a1
Test methods for fire behaviour of cable : (48)
IEC 60754-1/-2 smoke emission: halogen free, non corrosive (18)
IEC 61034 low smoke (18)
IEC 60332-1 flame retardant (18)
IEC 60332-3-24 fire retardant (18)
UL1666, ASTM E 662, NES711 and NES713 (18)
IEC 60754-1/-2 smoke emission: halogen free, non corrosive (41)
IEC 61034 low smoke (41)
IEC 60332-1 flame retardant (41)
IEC 60332-3-24 fire retardant (40)
UL1666, ASTM E 662, NES711 and NES713 (39)
CPR: EN50575:2017 class Cca s1 do a1 (1)
CPR: EN50575:2017 class B2ca s1a d0 a1 (1)
NFPA130 (ed. 2014) Ch.12 (NFPA70 ) via UL-1685/FT4/IEEE1202 (4)
NFPA130 (ed. 2014) Ch.12 (NFPA70 ) via UL-1685/FT4/IEEE1202 (8)
NFPA130 (ed. 2014) Ch.12 (NFPA70) via UL-1685/FT4/IEEE1202 (9)
EN50575:2017 (Hannover production) class Dca s1 d2 a1 (4)
EN50575:2017 class Dca s1 d2 a1 (3)
EN50575:2017 class Dca s1b d2 a1 (1)
CPR : EN50575:2014 + A1:2016 class B2ca s1a do a1 (1)
CPR: EN50575:2014 + A1:2016 class B2ca s1a do a1 (1)
CPR: EN50575:2014 + A1:2016 class B2ca s1a d0 a1 (5)
EN50575:2014 + A1:2016 (Hannover production) class B2ca s1b d0 a1 (2)
CPR: EN50575:2014 + A1:2016 (1)
CPR: EN50575:2014 + A1:2016 class B2ca s1b d0 a1 (1)
EN50575:2014 +A1:2016 (Hannover production) class B2ca s1b do a1 (1)
EN50575:2014 + A1:2016 (Hannover production) class B2ca s1b do a1 (1)
CPR: EN50575:2014 + A1:2016 classified cable, class B2ca s1b do a1 (1)
CPR: EN50575:2014 + A1:2016 classified cable, class B2ca s1a do a1 (4)
EN50575:2014 + A1:2016 (Hannover production) class Dca s1 d2 a1 (1)
CPR: EN50575:2014 + A1:2016 classified cable, class B2ca (1)
s1a do a1 (1)
UL1666, ASTM E 662, NES711, NES713 and NFPA130 (1)
IEC 60754-1/-2 smoke emission, halogen free, non corrosive (1)
EN50575:2014 + A1:2016 (Hannover production) class Cca s1a d1 a1 (1)
Loading products
RAYA158-50JFNA
- Size
- 1-5/8
- Impedance - Number
- 50
- Impedance - Tolerance
- 2
- Jacket
- JFN
- Jacket Color
- black
- Jacket Description
- Halogen free, non corrosive, flame and fire retardant, low smoke, polyolefin
- Slot Design
- Groups of slope slots at short intervals
- Frequency Selection
- 600
- 900
- 1800/1900
- 2200
- 2400
RAYA158-50JFLA
- Size
- 1-5/8
- Impedance - Number
- 50
- Impedance - Tolerance
- 2
- Jacket
- JFL
- Jacket Color
- black
- Jacket Description
- Halogen free, non corrosive, flame and fire retardant, low smoke, polyolefin + flame barrier tape above outer conductor for lowest cable loss
- Slot Design
- Groups of slope slots at short intervals
- Frequency Selection
- 600
- 900
- 1800/1900
- 2200
- 2400
RLKW12-50CPR
- Size
- 1/2
- Impedance - Number
- 50
- Impedance - Tolerance
- 2
- Jacket
- CPR, EN50575:2014 + A1:2016 classified cable
- Jacket Description
- Halogen free, non corrosive, flame and fire retardant, low smoke, polyolefin + flame barrier tape above outer conductor for lowest cable loss
- Slot Design
- Groups of vertical slots at short intervals
- Frequency Selection
- 600
- 900
- 1800/1900
RLKW78-50JFNA
- Size
- 7/8
- Impedance - Number
- 50
- Impedance - Tolerance
- 2
- Jacket
- JFN
- Jacket Description
- Halogen free, non corrosive, flame and fire retardant, low smoke, polyolefin
- Slot Design
- Groups of vertical slots at short intervals
- Frequency Selection
- 600
- 900
- 1800/1900
RLKW12-50JFLA
- Size
- 1/2
- Impedance - Number
- 50
- Impedance - Tolerance
- 2
- Jacket
- JFL
- Jacket Description
- Halogen free, non corrosive, flame and fire retardant, low smoke, polyolefin + flame barrier tape above outer conductor for lowest cable loss
- Slot Design
- Groups of vertical slots at short intervals
- Frequency Selection
- 600
- 900
- 1800/1900
RAY158-50JFLA
- Size
- 1-5/8
- Impedance - Number
- 50
- Impedance - Tolerance
- 2
- Jacket
- JFL
- Jacket Description
- Halogen free, non corrosive, flame and fire retardant, low smoke, polyolefin + flame barrier tape above outer conductor for lowest cable loss
- Slot Design
- Groups of slope slots at short intervals
- Frequency Selection
- 600
- 900
RAY158-50JFNA
- Size
- 1-5/8
- Impedance - Number
- 50
- Impedance - Tolerance
- 2
- Jacket
- JFN
- Jacket Description
- Halogen free, non corrosive, flame and fire retardant, low smoke, polyolefin
- Slot Design
- Groups of slope slots at short intervals
- Frequency Selection
- 600
- 900
RAY78-50JFLA
- Size
- 7/8
- Impedance - Number
- 50
- Impedance - Tolerance
- 2
- Jacket
- JFL
- Jacket Description
- Halogen free, non corrosive, flame and fire retardant, low smoke, polyolefin + flame barrier tape above outer conductor for lowest cable loss
- Slot Design
- Groups of slope slots at short intervals
- Frequency Selection
- 600
- 900
RAY78-50JFNA
- Size
- 7/8
- Impedance - Number
- 50
- Impedance - Tolerance
- 2
- Jacket
- JFN
- Jacket Description
- Halogen free, non corrosive, flame and fire retardant, low smoke, polyolefin
- Slot Design
- Groups of slope slots at short intervals
- Frequency Selection
- 600
- 900
RLK12-50JFNA
- Size
- 1/2
- Impedance - Number
- 50
- Impedance - Tolerance
- 2
- Jacket
- JFN
- Jacket Description
- Halogen free, non corrosive, flame and fire retardant, low smoke, polyolefin
- Slot Design
- Groups of vertical slots at short intervals
- Frequency Selection
- 600
- 900
RLK158-50JFLA
- Size
- 1-5/8
- Impedance - Number
- 50
- Impedance - Tolerance
- 2
- Jacket
- JFL
- Jacket Description
- Halogen free, non corrosive, flame and fire retardant, low smoke, polyolefin + flame barrier tape above outer conductor for lowest cable loss
- Slot Design
- Groups of vertical slots at short intervals
- Frequency Selection
- 600
- 900
RLK158-50JFNA
- Size
- 1-5/8
- Impedance - Number
- 50
- Impedance - Tolerance
- 2
- Jacket
- JFN
- Jacket Description
- Halogen free, non corrosive, flame and fire retardant, low smoke, polyolefin
- Slot Design
- Groups of vertical slots at short intervals
- Frequency Selection
- 600
- 900

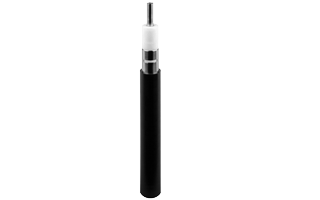

RLK78-50JFLA
- Size
- 7/8
- Impedance - Number
- 50
- Impedance - Tolerance
- 2
- Jacket
- JFL
- Jacket Description
- Halogen free, non corrosive, flame and fire retardant, low smoke, polyolefin + flame barrier tape above outer conductor for lowest cable loss
- Slot Design
- Groups of vertical slots at short intervals
- Frequency Selection
- 600
- 900
RLK78-50JFNA
- Size
- 7/8
- Impedance - Number
- 50
- Impedance - Tolerance
- 2
- Jacket
- JFN
- Jacket Description
- Halogen free, non corrosive, flame and fire retardant, low smoke, polyolefin
- Slot Design
- Groups of vertical slots at short intervals
- Frequency Selection
- 600
- 900
RLKU12-50JFNA
- Size
- 1/2
- Impedance - Number
- 50
- Impedance - Tolerance
- 2
- Jacket
- JFN
- Jacket Description
- Halogen free, non corrosive, flame and fire retardant, low smoke, polyolefin
- Slot Design
- Groups of vertical slots at short intervals
- Frequency Selection
- 600
- 900
- 1800/1900
- 2200
- 2400
- 2500
- 2700
RLKU158-50JFLAH
- Size
- 1-5/8
- Impedance - Number
- 50
- Impedance - Tolerance
- 2
- Jacket
- JFL
- Jacket Description
- Halogen free, non corrosive, flame and fire retardant, low smoke, polyolefin + flame barrier tape above outer conductor for lowest cable loss
- Slot Design
- Groups of vertical slots at short intervals
- Frequency Selection
- 600
- 900
- 1800/1900
- 2200
- 2400
- 2500
- 2700
RLKU158-50JFNAH
- Size
- 1-5/8
- Impedance - Number
- 50
- Impedance - Tolerance
- 2
- Jacket
- JFN
- Jacket Description
- Halogen free, non corrosive, flame and fire retardant, low smoke, polyolefin
- Slot Design
- Groups of vertical slots at short intervals
- Frequency Selection
- 600
- 900
- 1800/1900
- 2200
- 2400
- 2500
- 2700
RLKU78-50JFLA
- Size
- 7/8
- Impedance - Number
- 50
- Impedance - Tolerance
- 2
- Jacket
- JFL
- Jacket Description
- Halogen free, non corrosive, flame and fire retardant, low smoke, polyolefin + flame barrier tape above outer conductor for lowest cable loss
- Slot Design
- Groups of vertical slots at short intervals
- Frequency Selection
- 600
- 900
- 1800/1900
- 2200
- 2400
- 2500
- 2700
RLKU78-50JFNA
- Size
- 7/8
- Impedance - Number
- 50
- Impedance - Tolerance
- 2
- Jacket
- JFN
- Jacket Description
- Halogen free, non corrosive, flame and fire retardant, low smoke, polyolefin
- Slot Design
- Groups of vertical slots at short intervals
- Frequency Selection
- 600
- 900
- 1800/1900
- 2200
- 2400
- 2500
- 2700
RLK114-50JFNA
- Size
- 1-1/4
- Impedance - Number
- 50
- Impedance - Tolerance
- 2
- Jacket
- JFN
- Jacket Description
- Halogen free, non corrosive, flame and fire retardant, low smoke, polyolefin
- Slot Design
- Groups of vertical slots at short intervals
- Frequency Selection
- 400
- 800
- 900
RLKW114-50JFNA
- Size
- 1-1/4
- Impedance - Number
- 50
- Impedance - Tolerance
- 2
- Jacket
- JFN, EN50575:2017 classified cable
- Jacket Description
- Halogen free, non corrosive, flame and fire retardant, low smoke, polyolefin
- Slot Design
- Groups of vertical slots at short intervals
- Frequency Selection
- 600
- 900
- 1800/1900
RLKU114-50JFNAH
- Size
- 1-1/4
- Impedance - Number
- 50
- Impedance - Tolerance
- 2
- Jacket
- JFN, EN50575:2017 classified cable
- Jacket Description
- Halogen free, non corrosive, flame and fire retardant, low smoke, polyolefin
- Slot Design
- Groups of vertical slots at short intervals
- Frequency Selection
- 600
- 900
- 1800/1900
- 2200
- 2400
- 2500
- 2700
RAY114-50JFNAB
- Size
- 1-1/4
- Impedance - Number
- 50
- Impedance - Tolerance
- 2
- Jacket
- JFN, EN50575:2017 classified cable
- Jacket Description
- Halogen free, non corrosive, flame and fire retardant, low smoke, polyolefin
- Slot Design
- Groups of slope slots at short intervals
- Frequency Selection
- 600
- 900
RAY114-50JFNA
- Size
- 1-1/4
- Impedance - Number
- 50
- Impedance - Tolerance
- 2
- Jacket
- JFN, EN50575:2017 classified cable
- Jacket Description
- Halogen free, non corrosive, flame and fire retardant, low smoke, polyolefin
- Slot Design
- Groups of slope slots at short intervals
- Frequency Selection
- 600
- 900
