Lifetime Connectivity

NF-RE60
Elliptical Waveguide to Type N Female Coax Adapter

Rev : A | Rev date : 15 Nov 2025
The high performance coaxial cable to waveguide adapter is specifically designed to provide the highest quality interface while simplifying and speeding up the attachment of connectors to the RADIAFLEX® radiating waveguide RE60. The connector provides outstanding value to users because they permit quick, easy and reliable installation at any location, thereby allowing the operator flexibility while saving installation time.

Feature / Benefits

  • Waveguide installation - the flange adapter provides proper matching of elliptical waveguide flanges to N-female connector.
  • Time-saving and easy installation - reliable and simple attachment avoids unnecessary connector adjustments and provides outstanding performance. Saves time and provides cost savings.
  • Robust mechanical design - ideally for in-tunnel applications.
  • Excellent electrical performance - low VSWR
  • Totally waterproof - assures safe, long term operation.
General Specifications
Cable Size RE60
Connector Interface N female
Connector Type Axially in the direction of the installed waveguide
Sealing Method Shrinking Sleeve
Testing and Environmental
Waterproof Level IP68

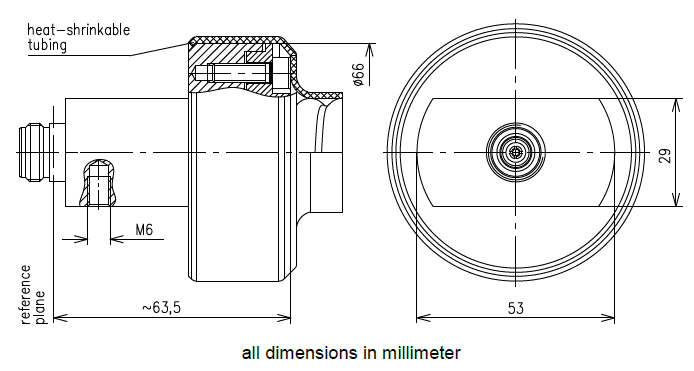

Mechanical Specifications
Plating Outer/Inner Brass
Length 75mm (2.95in)
Outer Diameter 69mm (2.72in)
Electrical Specifications
Nominal Impedance 50 ohms
Frequency Range VSWR value Return Loss value
5.0 < f ≤ 6.0 GHz 1.12 24.9

External Document Links

Notes
Power Rating: 10 Watt
Earthing: via M6 screw
