Lifetime Connectivity

SBOF-0ZXXSP-HEAP-YC
Fiber Optic Splice Closure up to 96 Fiber

Rev : A | Rev date : 15 Nov 2025

Fiber optic splice closure is mainly applicable to the straight-through and branching of aerial cables, buried cables and duct cables, as well as the protection on cables joints.

Feature / Benefits

  • Screw design around the box to realize the re-opening sealing.
  • Efficiently structure installation design save time when assembling
  • Pass through route with branch is compatible
  • Suitable for bunchy and ribbon fibers
  • Aerial, underground, wall-mounting, hand hole-mounting and duct-mounting are appropriate
  • Nut squeeze sealing for cable, wide cable range
  • It is horizontal structure with mechanical sealing

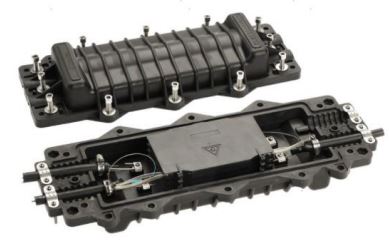

sbof-0zxxsp-heap-yc pic 1.jpg
Mechanical Specifications
Material PP plastic with high-strength glass-fiber(GF)
Dimensions (LxWxD) 454 x 201 x 120 (17.87 x 7.91 x 4.72)
Family Information
Column 1 Column 2 Column 3 Column 4 Column 5
SBOF-0Z24SP-HEAP-YC SBOF-0Z48SP-HEAP-YC
Max. Splicing Quantities 48 96
