SBIF-0ZXXSS-APAP-YC
Optical Fiber Cable Distribution Box, ABS,12-48 Cores,Pigtail is included

Rev : B | Rev date : 15 Nov 2025

RFS Optical fibre cable distribution box is a wiring line device of user distributions in FTTH system and distrubuted Radio system , it provides protection and management for fiber cable, and be used for terminating, cable branching, cross connection. It is mainly used for user access point in FTTH-ODN network , it can be divided into indoor and outdoor type according to the installation scenario, for example distribution type and optic-split type . Pigtail and Splice protection sleeve are included.





Feature / Benefits

  • Made of high quality engineer plastic material (PC+ABS)
  • Good mechanical strength, Elegant appearance, sturdiness and durability
  • Provides interconnection for F/O trunk riser and branch or jumper F/O cable.
  • Suitable for indoor or outdoor ,wall-mounted , pole installation
  • Built-in stacked splice tray, easy for open, the splice tray can be taken down, easy for installation and maintenance.
  • The box door opening Angle is >180°, easy for handling cables and connections inside box
  • Cable，pigtails，patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.It is convenient for fixing and maintenance
  • Fibre routing reasonable, bending radius of fibers in any place is greater than 30mm
  • Water-proof/dust-proof/anti-aging, protection level up to IP65.

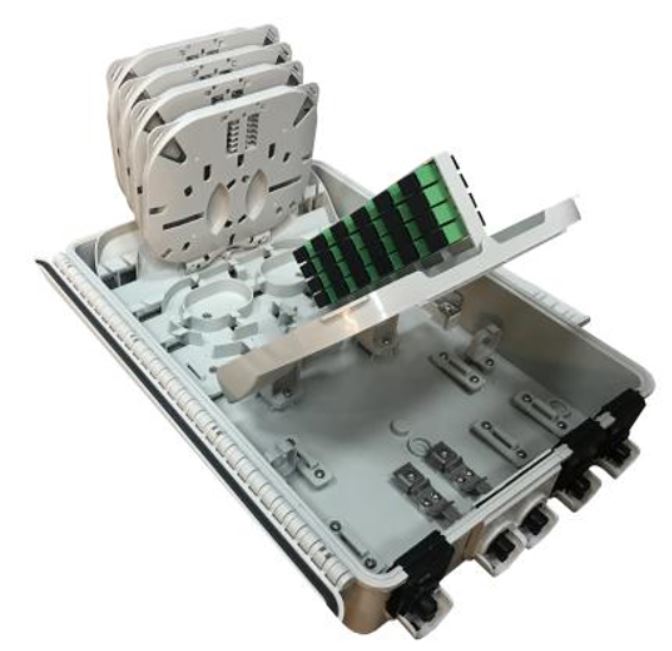

sbif-0z06 and 12 fibre pairs apap-yc.png
Mechanical Specifications
Material High quality engineer plastic material PC + ABS, complaint to IEC60695, GB5169 Standards Glow Wire Tester (GT-MC35H)
Mounting Wall mounted, pole, aerial installation
Cables Supported
Supported F/O Connections SC / APC
Electrical Specifications
Protection Class IP65
Additional Information
Column 1 Column 2 Column 3 Column 4 Column 5 Column 6
SBIF-0Z06SS-APAP-YC SBIF-0Z12SS-APAP-YC SBIF-0Z24SS-APAP-YC
Outer Dimension 292,5 mm × 227 mm × 102 mm 250 mm × 340 mm × 110 mm 420 mm × 320 mm × 130 mm
Splitter and Adapter Ports 12 24 48
Quantity of Pigtails included 24 48 96
Quantity of Splice Protection Sleeves included 24 50 100
Insertion loss (adapter&pigtail) ≤ 0.3dB ≤ 0.3dB ≤ 0.3dB
Operation Humidity ≤95%（30 deg C） ≤95%（30 deg C） ≤95%（30 deg C）
Atmospheric pressure 70Kpa～106Kpa 70Kpa～106Kpa 70Kpa～106Kpa
