Lifetime Connectivity

NM-LCF14-E01
N Male Connector for 1/4" Coaxial Cable, OMNI FIT™ Premium,
Straight, O-Ring and compression sealing

Rev : C | Rev date : 15 Nov 2025
OMNI FIT™ high performance connectors are designed for use with both CELLFLEX® (copper) and CELLFLEX® Lite (aluminium) cables. They are designed specifically to provide the highest quality connector-cable interface while simplifying and speeding up connector attachment. All RFS connectors are fully tested for mechanical and electrical compliance to industry specifications.
The N connector meets all technical requirements and covers high frequencies as well as legacy applications. Sealing against outer conductor and jacket by means of the o-ring and 360° compression fit. Multifunctional, self-lubricating HighTech polymer assembly locks on cable corrugation, avoids electrochemical potential differences and compression-fits to the jacket.

Feature / Benefits

  • Ultra high PIM performance i.e. reduced interference leading to high customer satisfaction
  • Two-piece design i.e. visual inspection of interlocking leads to improved installation security
  • OMNI FIT™ concept i.e. streamlined order management and reduced stock level
  • Watertight sealing in mated and unmated condition, i.e. reduced efforts during installation and improved security during operation
  • Tri metal alloy plating i.e. extreme resistance against corrosion even under hardest climatic and environmental circumstances
  • Multi-thread (Tristart) design i.e. simplified and accelerated tightening process
  • RoHS (EU) and CRoHS (China) compliant i.e. can be used on a global basis
General Specifications
Cable Size 1/4
Cable Type Foam Dielectric
Model Series LCF14-50 Series
Connector Interface N
Connector Type

OMNI FIT™ PREMIUM Straight
Sealing Method

O-Ring
Testing and Environmental
Waterproof Level IP68

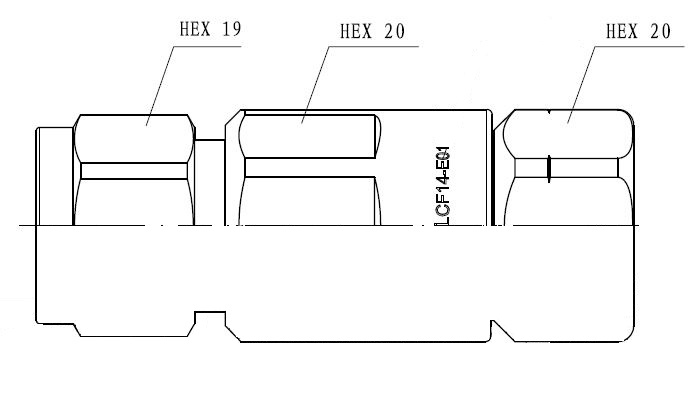

Mechanical Specifications
Plating Outer/Inner Tri metal alloy/Silver
Length 57mm (2.244in)
Outer Diameter 22mm (0.866in)
Inner Contact Attachment Spring Finger
Outer Contact Attachment 360° clamping
Electrical Specifications
Nominal Impedance 50 ohms
3rd Order IM Product @ 2x20 Watts

-156 ; typical -162
Maximum Frequency 6 GHz
Frequency Range VSWR value Return Loss value
0 < f ≤ 1.0 GHz 1.02 40
1.0 < f ≤ 2.2 GHz 1.04 34
2.2 < f ≤ 2.7 GHz 1.04 34
2.7 < f ≤ 3.8 GHz 1.08 28
3.8 < f ≤ 5.0 GHz 1.17 22
5.0 < f ≤ 6.0 GHz 1.22 20

External Document Links

Notes
