FONF-ME06S-XXXM
Fiber Optic Cable Assembly, MTP12/APC Male to MTP10/APC Male + 2 x SC/APC, LSZH, Indoor

Rev : C | Rev date : 15 Nov 2025

Fiber only cable assembly, 12 single mode fibers, preterminated with an MTP12 male connector on one end and an MTP10 male connector together with 2 SC/APC connectors on the other end. This assembly enables 2 fibers from an MTP12 backone cable to be "dropped" for connection with two SC/APC connections. Suitable for indoor applications, using CPR rated Eca class LSZH, Flame retardant: IEC 61304 (min smoke emission), IEC 60754-1, Halogen Free, IEC 60332-3 (Reduced Fire Propagation) as sheath materials. Optimized for Radio over Fiber (RoF) applications, for use within the RFS "Plug and Play" RoF solution.



Feature / Benefits

  • High precision MTP and SC/APC fiber connectors provides low insertion loss, high return loss and excellent stability and durability
  • Available in a range of standard or customized lengths to simplify network design
  • Mechanical branching system ensures full strain relief
  • All connectors are terminated and tested in controlled conditions to ensure optimum performance and reliability
  • RFS' "Plug and Play" solution simplifies network design, minimizes installation/testing time and the necessary on site skills
  • XXX in the product name FONF-ME06S-XXXM denotes required length (see below tables for available standard lengths)



Fiber Optic, No Armour, Flame retardant Jacket, MTP Male, (E)MTP Male with 2 x SC Connectors, 06 Pairs Fiber, Singlemode, XXX Meters

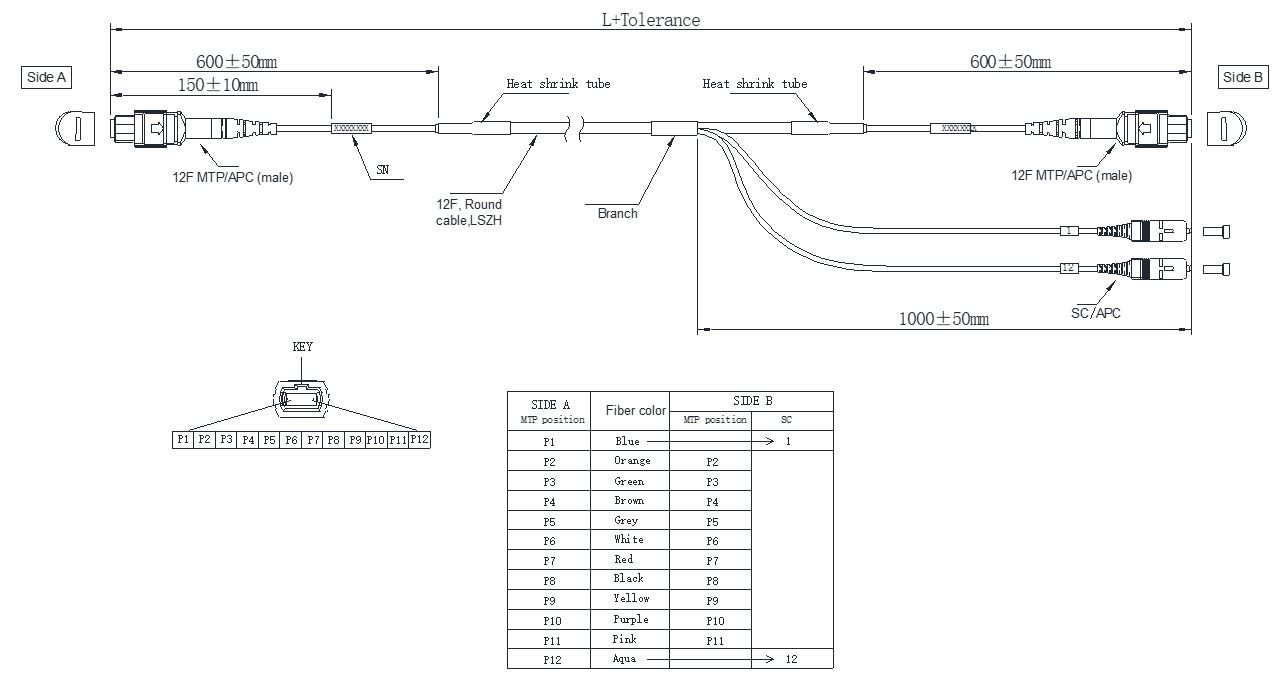

3.1 fonf-me12s-xxxm.jpg
Structure

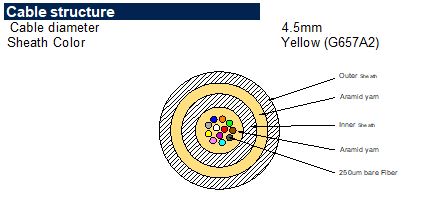

Cable Type 12 single mode fibers (G657 A2) , LSZH jacket, yellow
Number of Fiber 12
Mechanical Specifications
Outer Diameter Nominal 4.5mm (0.177in)
Minimum Single Bending Radius 45mm (1.772in)
Minimum Multi Bending Radius 90mm (3.543in)
Tensile Strength (Operating) 130 N
Tensile Strength (Installation) 440 N
Crush Resistance (Operating) 300 N / 10 cm
Crush Resistance (Installation) 1000 N / 10 cm
Cable Jacket
Jacket Material CPR rated Eca class LSZH, Flame retardant: IEC 61304 (min smoke emission), IEC 60754-1 Halogen Free, IEC 60332-3 (Reduced Fire Propagation)
F/O Cable Specifications
F/O Cable Type Loose-tube, Single Mode
Core/Clad 9 /125
Cable Diameter mm (in) 3mm (0.118in)
Cable Diameter Breakout 2.0 mm on the SC side
F/O Cable Jacket CPR rated Eca class LSZH, Flame retardant: IEC 61304 (min smoke emission), IEC 60754-1 Halogen Free, IEC 60332-3 (Reduced Fire Propagation)
F/O Standards (Meets or Exceeds) G657A2
Fiber Termination End 1 MTP/APC male, single mode, yellow housing, IEC 61754-7
Fiber Termination End 2 MTP/APC male, single mode, yellow housing, IEC 61754-7 with 2 x SC/APC simplex
FO Break-out length (Top) 1000 +/-50 (39.37 +/-1.97)
Fiber Attenuation ≤ 0.36dB/km λ=1310nm ; ≤0.22dB/km λ =1550nm dB/km
Connector Insertion Loss MTP(SM):Max. 0.35 dB @ 1310&1550nm/ IEC 61300-3-4 Method B ; SC/APC(SM):Max. 0.3 dB @ 1310&1550nm/ IEC 61300-3-4 Method B
Connector Return Loss MTP(SM): Min. 60 dB @ 1310&1550nm ; SC/APC(SM): Min. 60 dB @ 1310&1550nm
Environmental
Storage Temperature -25°C to 70°C (-13°F to 158°F)
Operation Temperature -20°C to 60°C (-4°F to 140°F)
Installation Temperature -10°C to 55°C (14°F to 131°F)
Additional Assemblies
Length Model Name
Length Model Name
1 m FONF-ME06S-001M
2 m FONF-ME06S-002M
3 m FONF-ME06S-003M
4 m FONF-ME06S-004M
5 m FONF-ME06S-005M
6 m FONF-ME06S-006M
7 m FONF-ME06S-007M
8 m FONF-ME06S-008M
9 m FONF-ME06S-009M
10 m FONF-ME06S-010M
