Lifetime Connectivity

FONF-FF12S-XXXM-01
Fiber Optic Cable Assembly, 2 x MTP12/APC Female to 2 x MTP12/APC Female, LSZH, Indoor -CPR

Rev : C | Rev date : 15 Nov 2025
fiber only cable assemby, 24 singlemode fibers, pre-terminated with 2x MTP12 female connectors on both ends of this LSZH, fire rated to Eca indoor cable sheath meeting flame retarant IEC 61304, IEC60754-A, IEC60332--3C for indoor use. Optimized for Radio over Fiber (RoF) applications, for use within the RFS "Plug and Play"

Feature / Benefits

  • High precision MTP/APC fiber connector provides low insertion loss, high return loss, excellent stability and durability
  • Available in a range of standard or customized lengths to simplify network design
  • MTP connectors are terminated and fully tested in controlled conditions to ensure optimum performance and reliability
  • Mechanical branching system ensures full strain relief
  • RFS' "Plug and Play" solution simplifies network design, minimizes installation/testing time and the necessary on site skills



Fiber Optic, No Armour, Flame retardant Jacket, MTP Female, MTP Female ,12-pairs Singlemode, XXX Meters (01) 2 *MTP(12 cores) connector on both sides

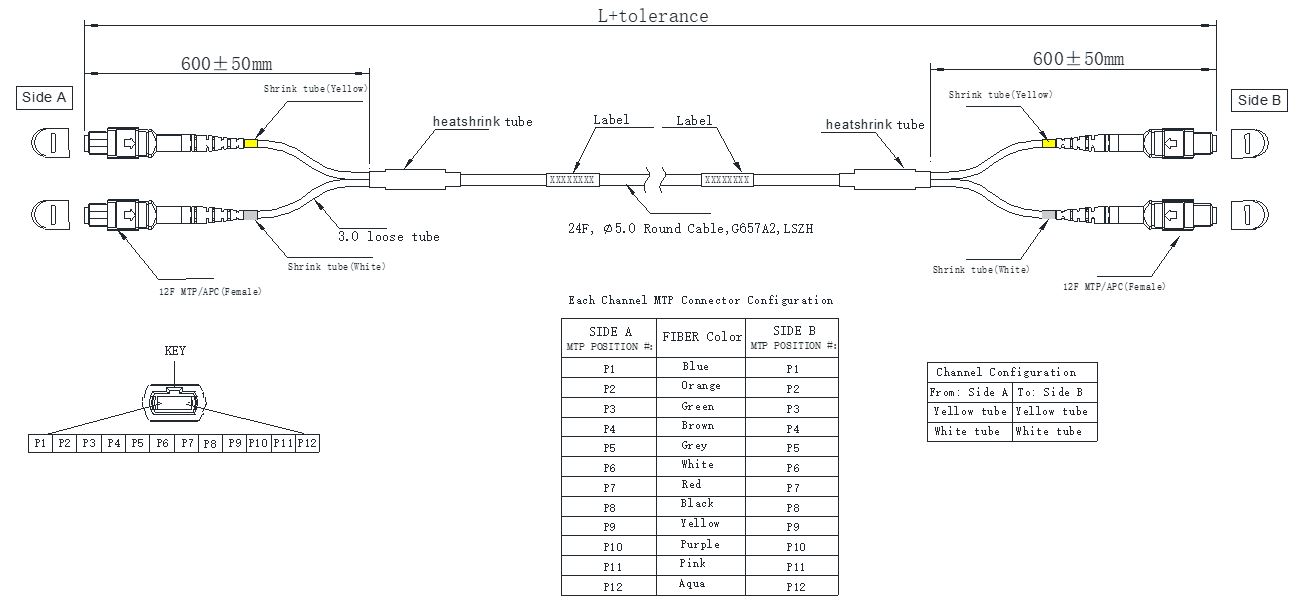

2.2-2 fonf-ff12s-xxxm-01 pic1.jpg
Structure
Cable Type 24 single mode fibers (G657A2), LSZH jacket, yellow
Number of Fiber 24
Mechanical Specifications
Outer Diameter Nominal 5mm (0.197in)
Minimum Single Bending Radius 50mm (1.969in)
Minimum Multi Bending Radius 100mm (3.937in)
Tensile Strength (Operating) 130 N
Tensile Strength (Installation) 440 N
Crush Resistance (Operating) 300 N / 10 cm
Crush Resistance (Installation) 1000 N / 10 cm
Cable Jacket
Jacket Material CPR rated Eca class LSZH, Flame retardant: IEC 61304 (min smoke emission), IEC 60754-1 Halogen Free, IEC 60332-3 (Reduced Fire Propagation)
F/O Cable Specifications
F/O Cable Type Loose-tube, Single Mode
Core/Clad 9 /125
Cable Diameter mm (in) 3mm (0.118in)
F/O Cable Jacket Eca fire rated for indoor use LSZH sheath material
F/O Standards (Meets or Exceeds) G657A2
Fiber Termination End 1 2 x MTP/APC female, single mode, yellow housing, IEC 61754-7
Fiber Termination End 2 2 x MTP/APC female, single mode, yellow housing, IEC 61754-7
Fiber Attenuation ≤ 0.36dB/km λ=1310nm ; ≤0.22dB/km λ =1550nm dB/km
Connector Insertion Loss MTP(SM): Max. 0.35 dB @ 1310&1550nm/ IEC 61300-3-4 Method B
Connector Return Loss MTP(SM): Min. 60 dB @ 1310&1550nm / IEC 61300-3-6
Environmental
Storage Temperature -25°C to 70°C (-13°F to 158°F)
Operation Temperature -20°C to 60°C (-4°F to 140°F)
Installation Temperature -10°C to 55°C (14°F to 131°F)
Testing
Fire Performance CPR rated Eca class LSZH, Flame retardant: IEC 61304 (min smoke emission), IEC 60754-1 Halogen Free, IEC 60332-3 (Reduced Fire Propagation)
Ordering Information
Length ModelNumber
>30 m 1 PC drum
<30 m 1 Pc in a bag
Additional Assemblies
Length Model Name
Length Model Name
10 m FONF-FF12S-010M-01
20 m FONF-FF12S-020M-01
30 m FONF-FF12S-030M-01
40 m FONF-FF12S-040M-01
50 m FONF-FF12S-050M-01
60 m FONF-FF12S-060M-01
70 m FONF-FF12S-070M-01
80 m FONF-FF12S-080M-01
90 m FONF-FF12S-090M-01
100 m FONF-FF12S-100M-01
110 m FONF-FF12S-110M-01
120 m FONF-FF12S-120M-01
130 m FONF-FF12S-130M-01
140 m FONF-FF12S-140M-01
150 m FONF-FF12S-150M-01
160 m FONF-FF12S-160M-01
170 m FONF-FF12S-170M-01
180 m FONF-FF12S-180M-01
190 m FONF-FF12S-190M-01
200 m FONF-FF12S-200M-01

Product image

Web Link

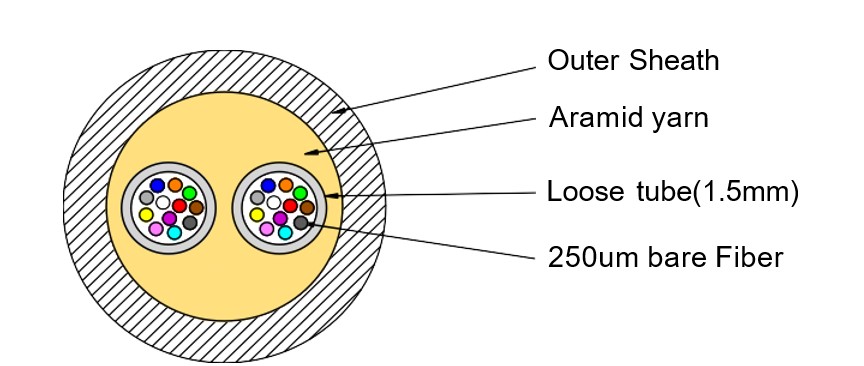

Cable Structure

Web Link
