CLAMP-7/13-RNG-05
Clamp for 2 Fiber cable and one Power cable

Rev : A | Rev date : 15 Nov 2025

Combined Power and Fiber clamp.

Feature / Benefits

  • 3 cables in one run
General Specifications
Product Type Hanger
Hanger Type Combined Power and Fiber Hanger
Cable Type Power and Fiber separated
Color Black
Testing and Environmental
Installation Temperature -20°C to 50°C (-4°F to 122°F)
Operation Temperature -40°C to 85°C (-40°F to 185°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Mechanical Specifications

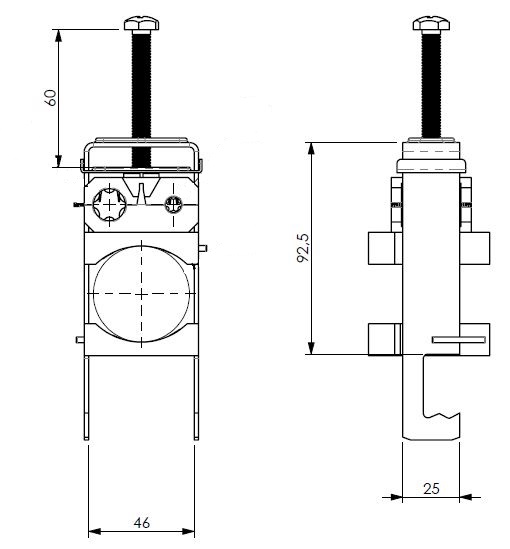

Cable Size 1 DC cable D=25-42mm; 1 FO cable d=5-7mm; 1 FO cable d=11-14mm
Number of Cable / Waveguide Runs 1 DC and 2 FO
Material

Stainless cable clamp
Complete with saddles
Recommended / Maximum Clamp Spacing 0.9 / 1.2 (2.95 / 4)
Packaging Information
Package Quantity 1
Weight per piece 0.212kg (0.467lb)

External Document Links

Notes
