78EIA-LCF78-062

78EIA-LCF78-062

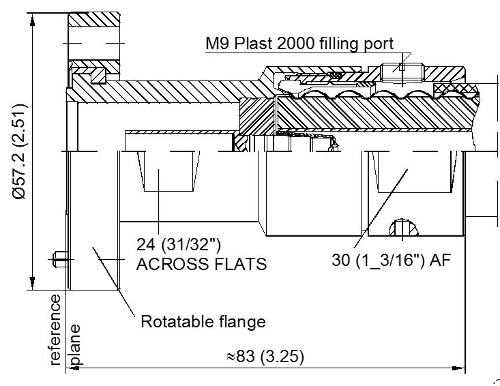

7/8" EIA Connector for 7/8" Coaxial Cable, RAPID FIT™ Sealing compound

Name: 7/8" EIA Connector for 7/8" Coaxial Cable, RAPID FIT™ Sealing compound
SKU: 78EIA-LCF78-062

Rev : F | Rev date : 15 Nov 2025

Radio Frequency Systems’ line of high performance coaxial cable connectors are designed specifically to provide the highest quality connector-cable interface while simplifying and speeding up the attachment of connectors to CELLFLEX® coaxial cables. RFS connectors are fully tested for mechanical and electrical compliance specifications. They are available in all popular cable sizes in a variety of mating interfaces. To join two cables with EIA connectors, two identical socket connectors are installed on either end of the cables to be joined, and a coupling element is used to make the connection of the center conductor. The coupling element must be ordered separately with the exception of the S-Line male versions that have a captivated coupling element. Connectors are available in sizes matching the nominal cable size. EIA connectors provide optimal power handling for the complete transmission line system.

Feature / Benefits

Single-piece design for Fast and Easy Installation
Reliable and simple attachment avoids unnecessary connector adjustments and provides outstanding performance every time. Saves time and provides cost savings.
Robust Mechanical Design
Low and consistent intermodulation performance guarantees outstanding system sensitivity.
Excellent Electrical Performance
Consistent and repeatable low VSWR improves overall system performance and margin and reduces mismatch losses
Totally Waterproof according to IP 68
Assures safe, long term operation in the harshest of environments.
RoHS (EU) and CRoHS (China) compliant i.e. can be used on a global basis
